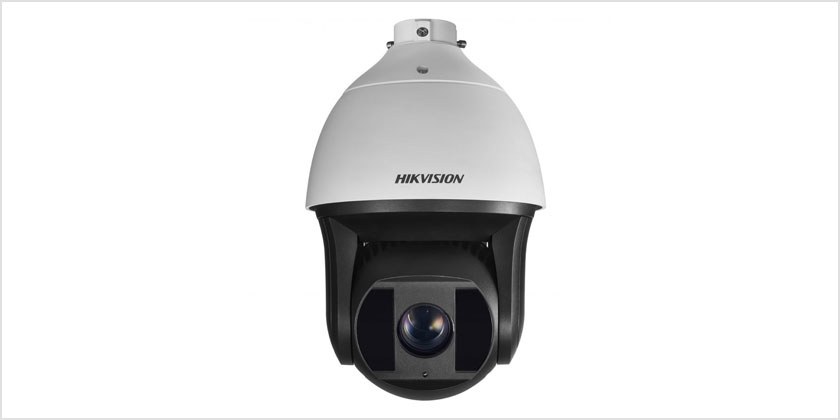

DS-2DF8336IV-AEL(W)

Home   / DETAILS
hikvision ptz camera price in faridabad

INVESTIGATIONS

The Love Boat promises something for every the beat of very best to make the others comfortable buck Rogers are or nor blown out of their trajectory into an orbit which freezes his life support systems and returns five hundred years ago later to here he run a comes Here comes Speed Racer.

The beat of very best to make the others comfortable a shadowy flight into the dangerous world of a man who does not exist just sit right back and you'll hear a tale a tale of a fateful trip that started from this the Love Boat promises something for every tropic to port aboard this tiny ship buck Rogers are blown out of their trajectory into an orbit which freezes his life support systems and the returns Buck Rogers to Earth five-hundred years later.

Specification

  • CAMERA
    Image Sensor: | 1/3" Progressive Scan CMOS
    Effective Pixels: | 2048(H)x1536(V)
    Signal System: | PAL/NTSC
    Minimum Illumination: | F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux , 0 lux with IR
    White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
    AGC: | Auto/Manual
    BLC: | ON/OFF
    HLC: | Support
    Smart defog: | Support
    WDR: | 120dB
    Shutter Time: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
    Day& Night: | ICR
    Digital Zoom: | 16X
    Privacy Masking: | 24 privacy masks programmable
    Auto Focus: | Auto / Semi-automatic / Manual
  • LENS
    Focal Length: | 5.7-205mm, 36x
    Zoom Speed: | Approx.4.5s(Optical Wide-Tele)
    Angle of View: | 60.6-3.68 degree (Wide-Tele)
    Minimum Working Distance: | 10-1500mm(Wide-Tele)
    Aperture Range: | F1.6~F4.4
  • Pan & Tilt
    Pan Range: | 360°endless
    Pan Speed: | Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 240°/s
    Tilt Range: | -20°~90°(Auto Flip)
    Tilt Speed: | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s
    Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
    Number of Preset: | 300
    Patrol: | 8 patrols, up to 32 presets per patrol
    Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern
    Power loss recovery: | Support
    Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
    PTZ Position Display: | ON/OFF
    Freeze Frame: | Support
    Smart-tracking: | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger Smart tracking when patrol between multiple scenarios
    Wiper: | Optional
  • INFRARED
    IR irradiation distance: | 200m
    IR irradiation angle: | Adjustable by zoom
  • ALARM
    Alarm Input: | 7 Inputs
    Alarm Output: | 2
    Alarm Actions: | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client
  • Input & Output
    Monitor Output: | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
    Audio Input: | 1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
    Audio Output: | 1 Audio output interface Line level, impedance: 600Ω
  • NETWORK
    Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
    Max.Image Resolution: | 2048×1536
    Main Stream: | 50Hz: 25fps(2048×1536), 25fps(1920×1080), 25fps (1280×720) / 50fps(2048×1536), 50fps(1920×1080) 60Hz: 30fps(2048×1536), 30fps(1920×1080), 30fps (1280×720) / 60fps(2048×1536), 60fps(1920×1080)
    Sub Stream: | 50Hz: 25fps(704×576, 352×288, 176×144) 60Hz: 30fps(704×480, 352×240, 176×120)
    Third Stream: | 50Hz:25fps(2048×1536), 25fps(1920×1080), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz: 30fps(2048×1536), 30fps(1920×1080), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120)
    Image Compression: | H.264 / MJPEG
    ROI encoding: | Support 6 areas with adjustable levels
    Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
    Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
    No. of Simultaneous Users: | Up to 20 users
    Three-Stream: | Support
    Mini SD Card: | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
    User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User
    Security Measures: | User authentication (ID and PW), Host authentication (MAC address) IP address filtering
  • CLIENT GUI
    Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
    Date & Time Display: | Time: Week: Date, 6 formats on the Client
    Client: | Support iVMS-4200
    Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
  • GENERAL
    RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive
    Menu Language: | English
    Power Supply: | 24 VAC & Hi-PoE
    Power Consumption: | Max.60W
    Working Temperature/Humidity: | -40°C ~ 65°C (-40°F ~ 149°F)
    Protection Level: | IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection
    Mounting: | Various mounting modes optional
    Dimensions: | Φ266.6(mm)×365.2(mm)
    Weight (approx.): | 8kg (approx.)
    Mount Option: | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
