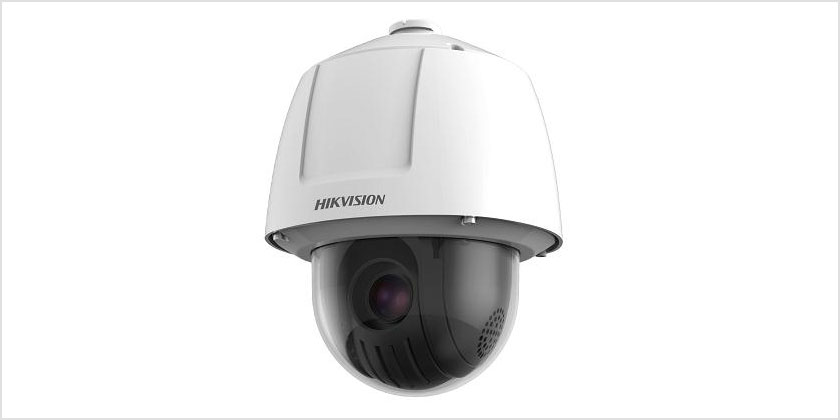

DS-2DF6336V-AEL

hikvision ptz camera price in faridabad fbd

About

Hikvision is the world’s largest supplier of video surveillance products and solutions. The company specializes in video surveillance technology, as well as designing and manufacturing a full-line of innovative CCTV and video surveillance products. The company started in year 2001 and today its the market leader in cctv,hikvision ptz camera price in faridabad fbd, cctv camera, ip camera, network camera, ptz camera, hd cctv, dvr and nvr.

Hikvision quickly achieved leading position in security industry and became a market leader of video surveillance industry. We are the authorised hikvision cctv dealer in faridabad since 2012 and surving our customers since last 5 year with zero escalation. If you are looking for any kind of cctv related requirement like hikvision cctv special camera price list in faridabad fbd,hikvision cctv camera dealers in ballabgarh,hikvision cctv special camera price list in faridabad fbd,hikvision hikvision cctv special camera price list in faridabad fbd,hikvision cctv special camera price list in faridabad fbd,hikvision cctv camera installation in faridabad fbd,hikvision cctv camera price list in faridabad fbd,hikvision cctv camera provider in faridabad fbd,hikvision cctv camera for home in faridabad fbd,hikvision ptz camera price in faridabad fbd,hikvision cctv camera hire in faridabad fbd,hikvision cctv surveillance in faridabad fbd,hikvision ptz camera price in faridabad fbd,hikvision hd cctv camera in faridabad fbd,hikvision dvr dealers in faridabad fbd,hikvision dvr suppliers in faridabad fbd.

Please feel free to contact us for any kind of hikvision ip camera requirement. We are happy to serve you.

Specification

CAMERA

Image Sensor:	\|	1/3" Progressive Scan CMOS
Effective Pixels:	\|	2048(H)x1536(V)
Signal System:	\|	PAL/NTSC
Minimum Illumination:	\|	color ：0.05 lux ( F1.6, AGC ON ) B/W : 0.01 lux ( F1.6, AGC ON )
White Balance:	\|	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:	\|	Auto/Manual
BLC:	\|	ON/OFF
HLC:	\|	Support
Smart defog:	\|	Support
WDR:	\|	120dB
Shutter Time:	\|	50Hz: 1/1-1/30,000s 60Hz: 1/1-1/30,000s
Day& Night:	\|	ICR
Digital Zoom:	\|	16x
Privacy Masking:	\|	24 privacy masks programmable
Auto Focus:	\|	Auto/Manual

LENS

Focal Length:	\|	5.7-205mm，36x
Zoom Speed:	\|	Approx 4.5S(Optical Wide-Tele)
Angle of View:	\|	60.6-3.68 degree (Wide-Tele)
Minimum Working Distance:	\|	10-1500mm(Wide-Tele)
Aperture Range:	\|	F1.6-F4.4

Pan & Tilt

Pan Range:	\|	360°endless
Pan Speed:	\|	Pan Manual Speed: 0.1° -300°/s, Pan Preset Speed: 540°/s
Tilt Range:	\|	-15°-90° (Auto Flip )
Tilt Speed:	\|	Pan Manual Speed: 0.1° -240°/s, Pan Preset Speed: 400°/s
Proportional Zoom:	\|	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:	\|	300
Patrol:	\|	8 patrols, up to 32 presets per patrol
Pattern:	\|	4 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery:	\|	Support
Park Action:	\|	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:	\|	ON/OFF
Freeze Frame:	\|	Support
Smart-tracking:	\|	Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger

ALARM

Alarm Input:	\|	7 Inputs
Alarm Output:	\|	2
Alarm Actions:	\|	Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client

Input & Output

Monitor Output:	\|	1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input:	\|	1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output:	\|	1 Audio output interface Line level, impedance: 600Ω

NETWORK

Ethernet:	\|	10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional)
Max.Image Resolution:	\|	2048×1536
Main Stream:	\|	50Hz: 25fps(2048×1536), 25fps(1920×1080), 25fps (1280×720) / 50fps(2048×1536), 50fps(1920×1080) 60Hz: 30fps(2048×1536), 30fps(1920×1080), 30fps (1280×720) / 60fps(2048×1536), 60fps(1920×1080)
Sub Stream:	\|	50Hz: 25fps(704×576, 352×288, 176×144) 60Hz: 30fps(704×480, 352×240, 176×120)
Third Stream:	\|	50Hz:25fps(2048×1536), 25fps(1920×1080), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz: 30fps(2048×1536), 30fps(1920×1080), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120)
Image Compression:	\|	H.264 / MJPEG
ROI encoding:	\|	Support 6 areas with adjustable levels
Audio Compression:	\|	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols:	\|	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users:	\|	Up to 20 users
Three-Stream:	\|	Support
Mini SD Card:	\|	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:	\|	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures:	\|	User authentication (ID and PW), Host authentication (MAC address) IP address filtering

CLIENT GUI

Camera Control:	\|	Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display:	\|	Time: Week: Date, 6 formats on the Client
Client:	\|	Support iVMS-4200
Web Browser:	\|	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language

GENERAL

RS-485 Protocols:	\|	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language:	\|	English / Chinese
Power Supply:	\|	High-PoE&24 VAC, Max.60W
Power Consumption:	\|	Max.60W
Working Temperature/Humidity:	\|	-40°C ~ 65°C (-40°F ~ 149°F)
Protection Level:	\|	IP67, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting:	\|	Various mounting modes optional
Dimensions:	\|	Φ178.3(mm)×331.0(mm) (Φ7.02”×13.03”)
Weight (approx.):	\|	8kg (approx.)
Mount Option:	\|	Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
